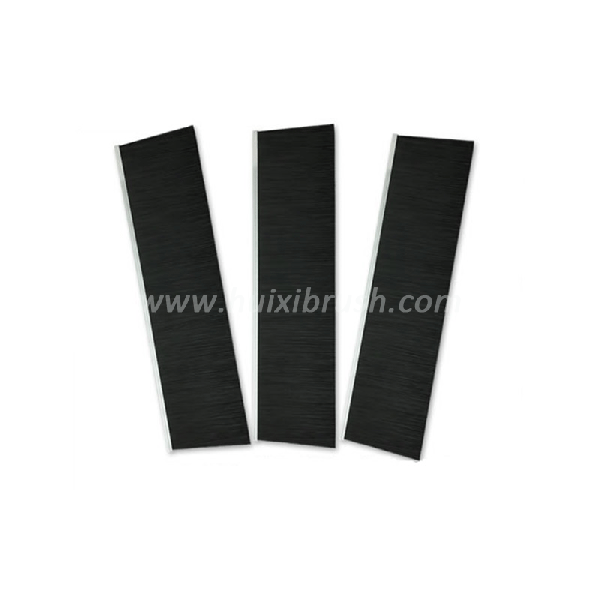

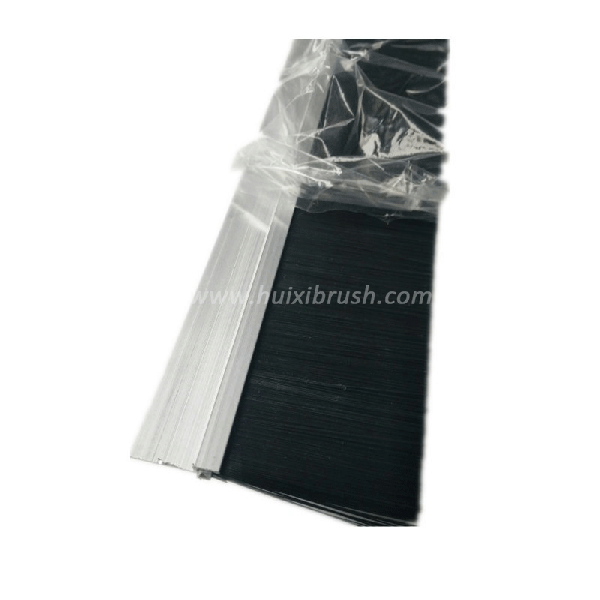

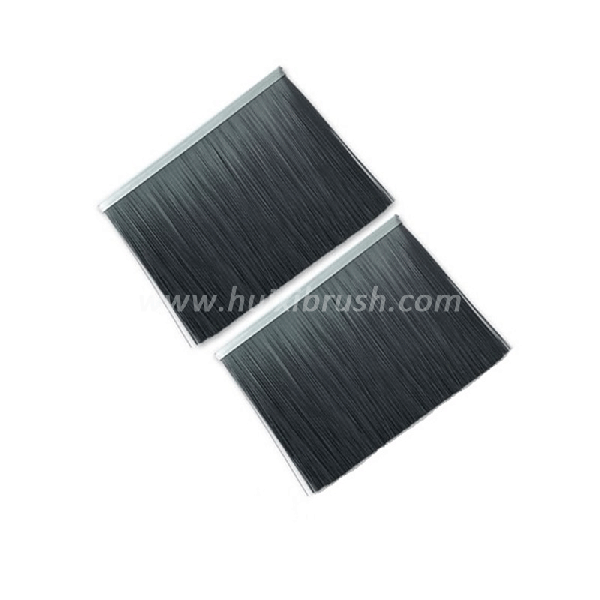

Brush size L200xW154 mm
V0 anti-flaming PBT bristle
Channel 8x8.9 mm
ISSO-5660-1
Used in equipment cabinet,dust control cabint etc.
Can be custom-made as requested size, materials, color.
According to roller gap, the brush comes in a range of brsite length from 15mm to 110mm available in production. Bristle size 0.2/0.3/0.35/0.4/0.5 mm.
.jpg)
And Huixi also supplies a variety size of aluminum carrier to hold the strip brushes in shape of h/T/Y/F that used most.
If you are interested in our Stainless Steel Wire Brush Strip, welcome to send message to us: info@huixibrush.com
We are happy to help you choose the most suitable brushes for you.
And Huixi also supplies a variety size of aluminum carrier to hold the strip brushes in shape of h/T/Y/F that used most.
| Model | H (overall height) | W (channel width) | B (channel height) | A (inside width) | C (profile thick) | |
 |
H20-4-4-2.8 | 20mm | 6mm | 6mm | 4mm | 1mm |
| H22-4-4-3.2 | 22mm | 6.3mm | 6.3mm | 4.3mm | 1mm | |
| 22mm | 7.3mm | 7.2mm | 5mm | 1.3mm | ||
| H25-5-5-4 | 25mm | 7.3mm | 7.3mm | 5.3mm | 1mm | |
| H27-6-6-4.8 | 27mm | 8.3mm | 8.3mm | 6.3mm | 1.2mm | |
| H30-6-7-5 | 30mm | 8.6mm | 9.6mm | 6.4mm | 1.2mm | |
| H50-8-9-7 | 50mm | 11.4mm | 11.8mm | 8.4mm | 1.8mm | |
| H60-8-9-7 | 60mm | 11.4mm | 11.8mm | 8.4mm | 1.8mm | |
 |
Y22-4-4-3.2 | 22mm | 6.3mm | 5.3mm | 4.3mm | 1mm |
 |
F20-4-4-2.8 | 20mm | 6mm | 6mm | 4mm | 1mm |
| F22-4-4-3.2 | 22mm | 6.3mm | 6.3mm | 4.3mm | 1mm | |
| F25-6-6-5 | 25mm | 8.3mm | 8.3mm | 6.3mm | 1mm | |
 |
T25-5-5-4 | 25mm | 7.3mm | 7.3mm | 5.3mm | 1mm |
If you are interested in our Stainless Steel Wire Brush Strip, welcome to send message to us: info@huixibrush.com
We are happy to help you choose the most suitable brushes for you.
