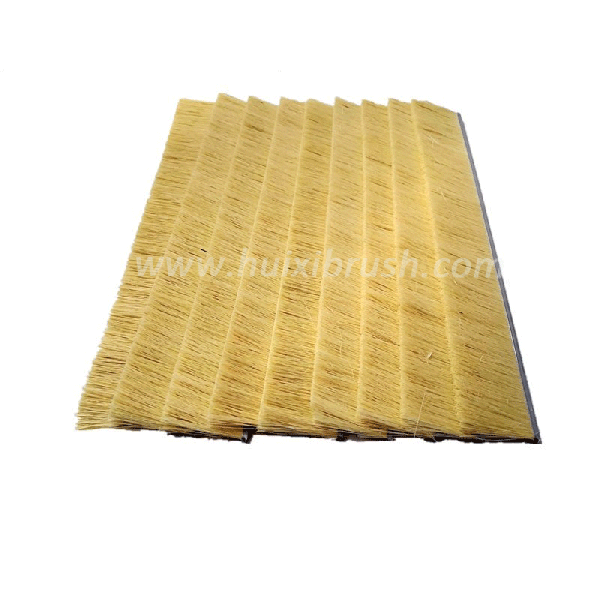

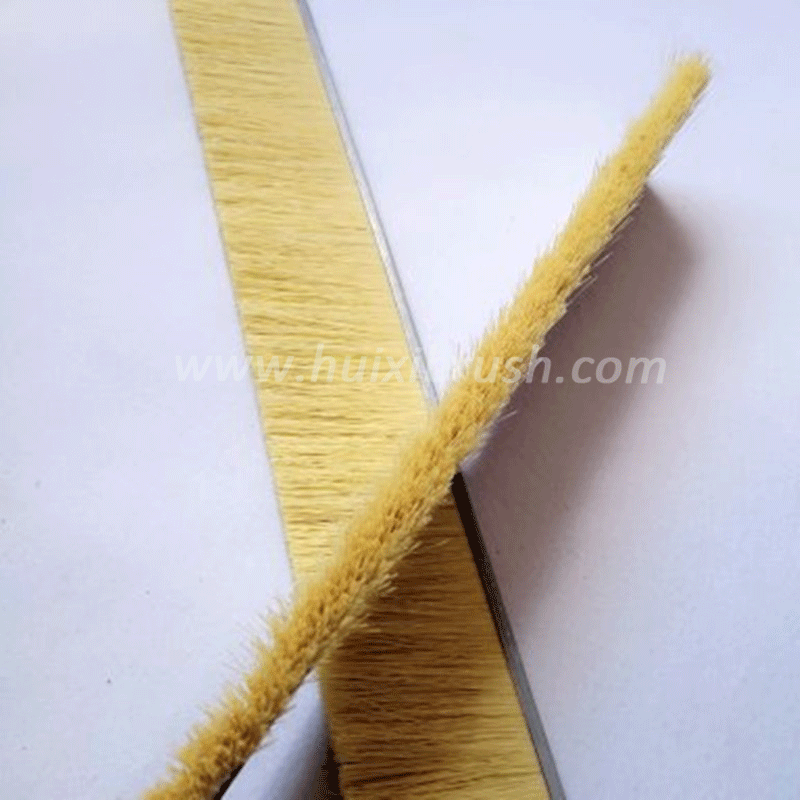

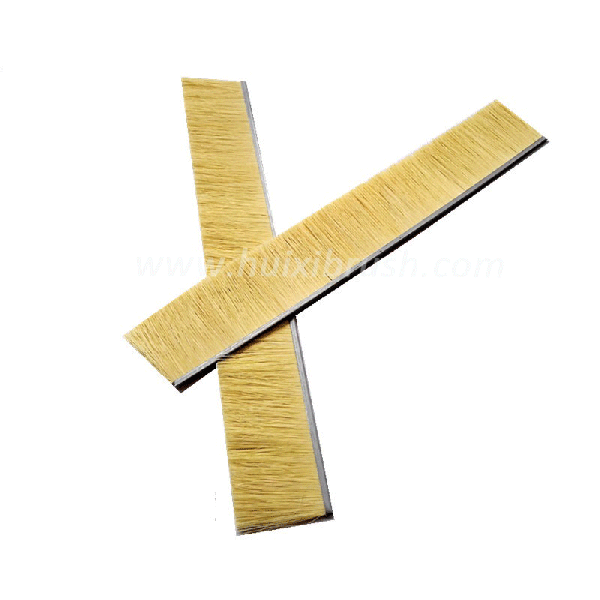

Mexico Sisal Tampico Fiber Strip Brush
Mexico tampico fiber filament
galvanized steel cannel 5x5mm

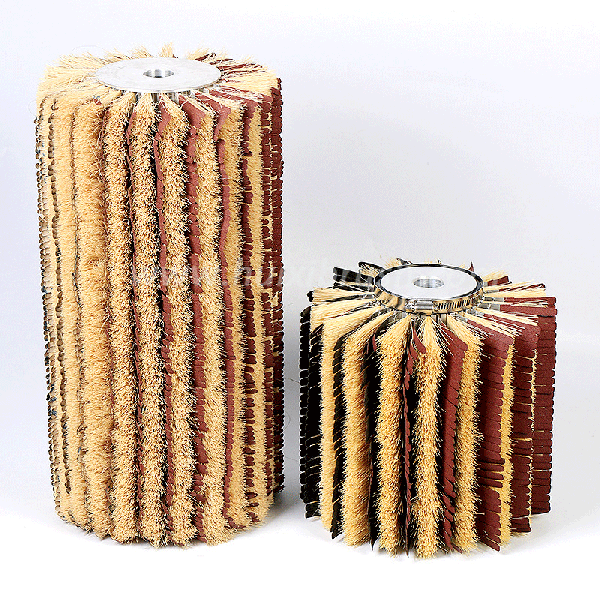

used in polishing brush roller
assembled with abrasive paper
Uses: As sisal fiber is a pure natural green plant material, sisal brush is mainly used in woodworking machinery curved sander, used for wood polishing and dust removal, sisal brush is also widely used in the food and beverage industry.
Advantages:
1. Pure natural materials, make the best use of everything, play a role in environmental protection and energy saving to a certain extent
2. Customized according to customer needs, to meet your different needs.
We can do customized strip brushes as the requirement.
According to roller door gap, the brush comes in a range of brsite length from 15mm to 110mm available in production. Bristle size 0.2/0.3/0.35/0.4/0.5 mm.
.jpg)
And Huixi also supplies a variety size of aluminum carrier to hold the strip brushes in shape of h/T/Y/F that used most.
If you are interested in our roller door strip brush, welcome to send message to us: info@huixibrush.com
We are happy to help you choose the most suitable brushes for you.
According to roller door gap, the brush comes in a range of brsite length from 15mm to 110mm available in production. Bristle size 0.2/0.3/0.35/0.4/0.5 mm.
And Huixi also supplies a variety size of aluminum carrier to hold the strip brushes in shape of h/T/Y/F that used most.
| Model | H (overall height) | W (channel width) | B (channel height) | A (inside width) | C (profile thick) | |
 |
H20-4-4-2.8 | 20mm | 6mm | 6mm | 4mm | 1mm |
| H22-4-4-3.2 | 22mm | 6.3mm | 6.3mm | 4.3mm | 1mm | |
| 22mm | 7.3mm | 7.2mm | 5mm | 1.3mm | ||
| H25-5-5-4 | 25mm | 7.3mm | 7.3mm | 5.3mm | 1mm | |
| H27-6-6-4.8 | 27mm | 8.3mm | 8.3mm | 6.3mm | 1.2mm | |
| H30-6-7-5 | 30mm | 8.6mm | 9.6mm | 6.4mm | 1.2mm | |
| H50-8-9-7 | 50mm | 11.4mm | 11.8mm | 8.4mm | 1.8mm | |
| H60-8-9-7 | 60mm | 11.4mm | 11.8mm | 8.4mm | 1.8mm | |
 |
Y22-4-4-3.2 | 22mm | 6.3mm | 5.3mm | 4.3mm | 1mm |
 |
F20-4-4-2.8 | 20mm | 6mm | 6mm | 4mm | 1mm |
| F22-4-4-3.2 | 22mm | 6.3mm | 6.3mm | 4.3mm | 1mm | |
| F25-6-6-5 | 25mm | 8.3mm | 8.3mm | 6.3mm | 1mm | |
 |
T25-5-5-4 | 25mm | 7.3mm | 7.3mm | 5.3mm | 1mm |
If you are interested in our roller door strip brush, welcome to send message to us: info@huixibrush.com
We are happy to help you choose the most suitable brushes for you.
