Brush Size L1245mm x W182mm
25h aluminum holder
filament height 157mm
0.3mm black bristle
|
SPECIFICATION (MM)
|
||
|
Product Name
|
Long Nylon Fill Bristle Brush Strip
|
|
|
Channel Base
|
Material
|
SECC galvanized steel, SUS-304 stainless steel, 6063-T5 aluminum |
|
RoHS
|
YES
|
|
|
REACH
|
YES
|
|
|
UL
|
YES
|
|
|
Channel Width
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Channel Height
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Filament
|
Material
|
PA6,PA66,PP,PBT,PET(flame retardant/anti-static),stainless steel,pure brass wire,animal hair,plant fiber,abrasive wire etc. |
|
Thickness
|
0.15，0.2，0.3，0.4，0.5，0.6，0.8，1.0mm
|
|
|
Type
|
straight/wave
|
|
|
Color
|
black,grey,blue,white,red,yellow,green,orange,purple(or customized per Pantone,RAL,NCS) |
|
|
Property
|
normal standard/flame retardant/anti-static
|
|
|
RoHS
|
YES
|
|
|
REACH
|
YES(except flame retardant bristles)
|
|
|
UL
|
YES
|
|
|
Brush Size
|
Brush Overal Height
|
5-175mm (customized)
|
|
Brush Total Length
|
5-3000mm (customized)
|
|
|
(Complete Brush) RoHS
|
YES
|
|
|
(Complete Brush) REACH
|
YES(except flame retardant bristles)
|
|
|
(Complete Brush) UL
|
YES
|
|
|
Remark: All PA6,PA66,PP,PBT,PET filament have flame retardant or anti-static feature; flame retardant bristles meet the RoHS standard but not REACH. |
||

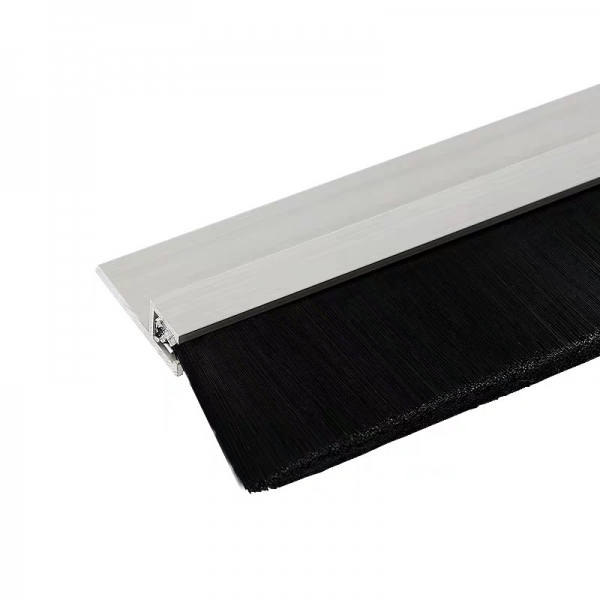

We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
These are our standard profile size, if no similar to yours, please contact with our sales to request custom ones for your unique application.
