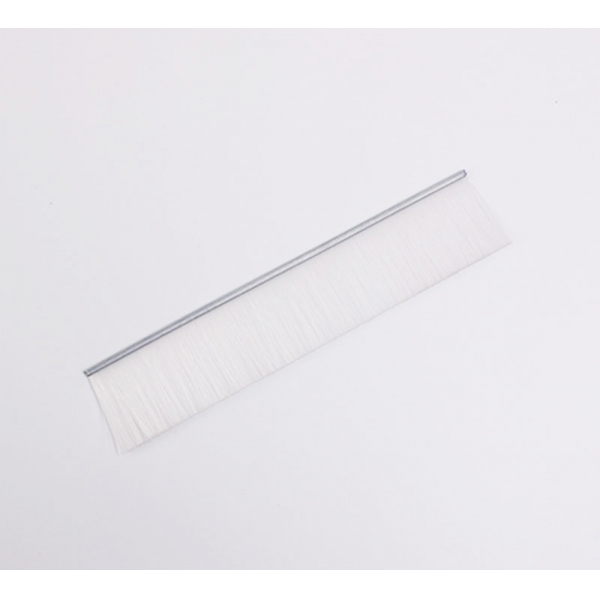

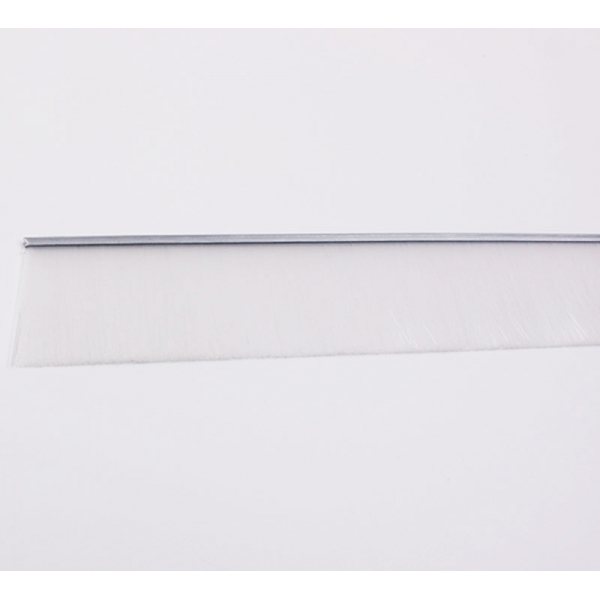

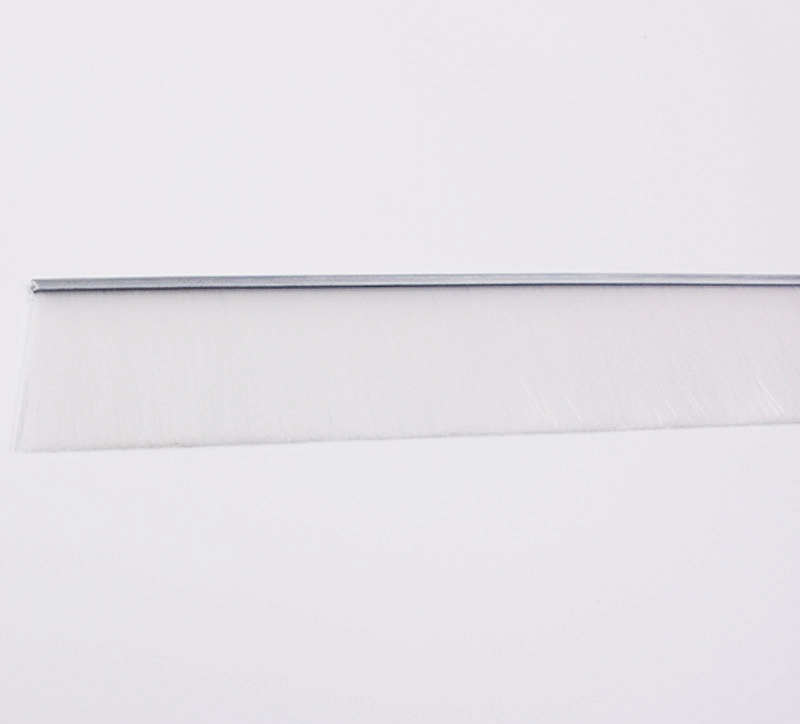

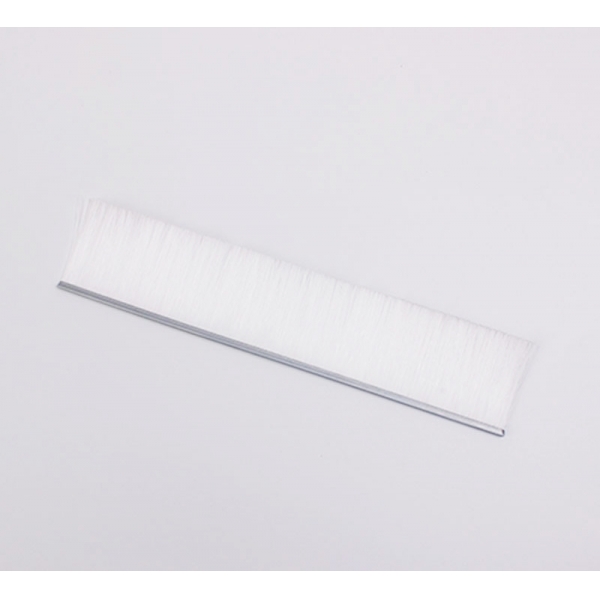

White Nylon Fill Bristle Door Brush Seal
Product Feature:1. Brush material use high-quality nylon bristles PA66
2. High performance and elasticity
3. Can be matched with aluminum holder
4. Easy to be assembled
5. Brush length can do 15mm~110 mm
6. Firm on both ends, no loose bristle

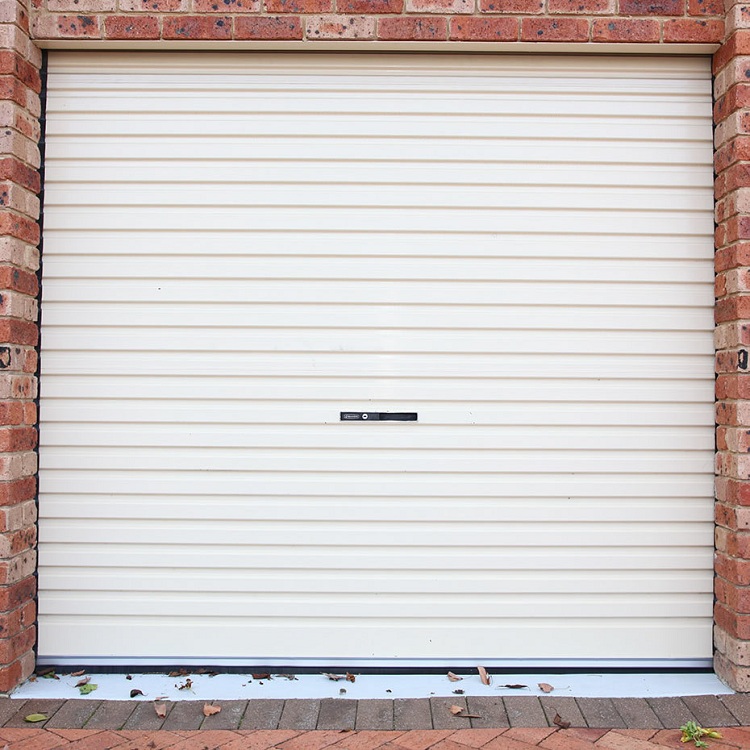

Roller door bristle strip brushes are versatile and welcomed in door seal application to stop drafts, dust and keep out pests, provide weather protection and keep your home, garage or factory clean and safe.
According to roller door gap, the brush comes in a range of brsite length from 15mm to 110mm available in production. Bristle size 0.2/0.3/0.35/0.4/0.5 mm.
.jpg)
And Huixi also supplies a variety size of aluminum carrier to hold the strip brushes in shape of h/T/Y/F that used most.
| Model | H (overall height) | W (channel width) | B (channel height) | A (inside width) | C (profile thick) | |
 |
H20-4-4-2.8 | 20mm | 6mm | 6mm | 4mm | 1mm |
| H22-4-4-3.2 | 22mm | 6.3mm | 6.3mm | 4.3mm | 1mm | |
| 22mm | 7.3mm | 7.2mm | 5mm | 1.3mm | ||
| H25-5-5-4 | 25mm | 7.3mm | 7.3mm | 5.3mm | 1mm | |
| H27-6-6-4.8 | 27mm | 8.3mm | 8.3mm | 6.3mm | 1.2mm | |
| H30-6-7-5 | 30mm | 8.6mm | 9.6mm | 6.4mm | 1.2mm | |
| H50-8-9-7 | 50mm | 11.4mm | 11.8mm | 8.4mm | 1.8mm | |
| H60-8-9-7 | 60mm | 11.4mm | 11.8mm | 8.4mm | 1.8mm | |
 |
Y22-4-4-3.2 | 22mm | 6.3mm | 5.3mm | 4.3mm | 1mm |
 |
F20-4-4-2.8 | 20mm | 6mm | 6mm | 4mm | 1mm |
| F22-4-4-3.2 | 22mm | 6.3mm | 6.3mm | 4.3mm | 1mm | |
| F25-6-6-5 | 25mm | 8.3mm | 8.3mm | 6.3mm | 1mm | |
 |
T25-5-5-4 | 25mm | 7.3mm | 7.3mm | 5.3mm | 1mm |
If you are interested in our roller door strip brush, welcome to send message to us: info@huixibrush.com
We are happy to help you choose the most suitable brushes for you.
