SPECIFICATION (MM)
|
||
|
Product Name
|

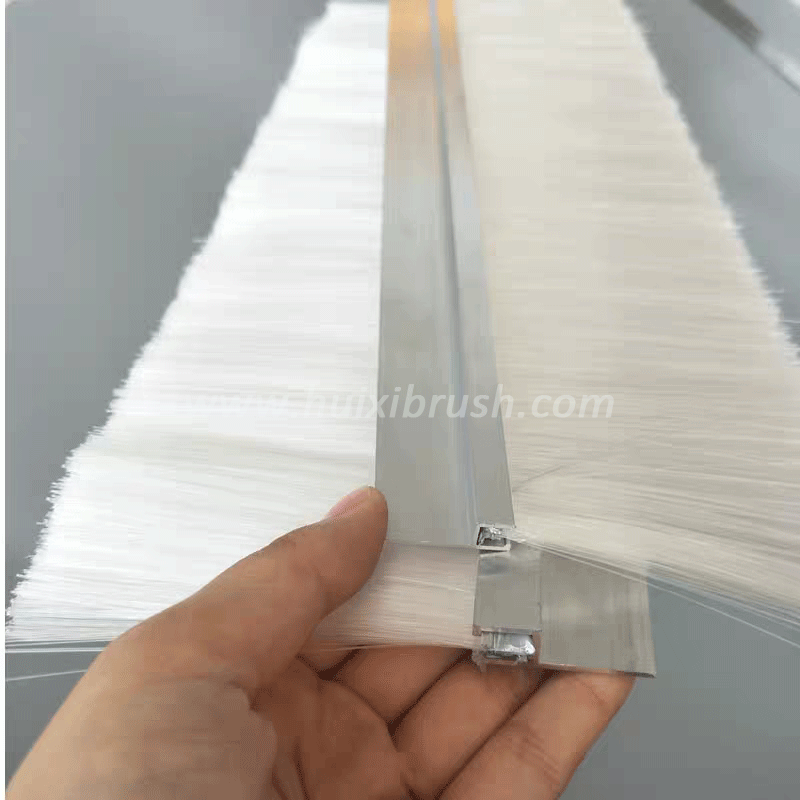

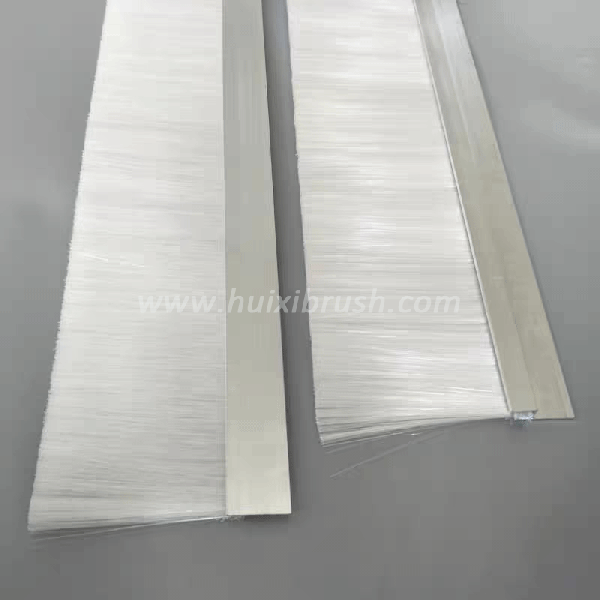

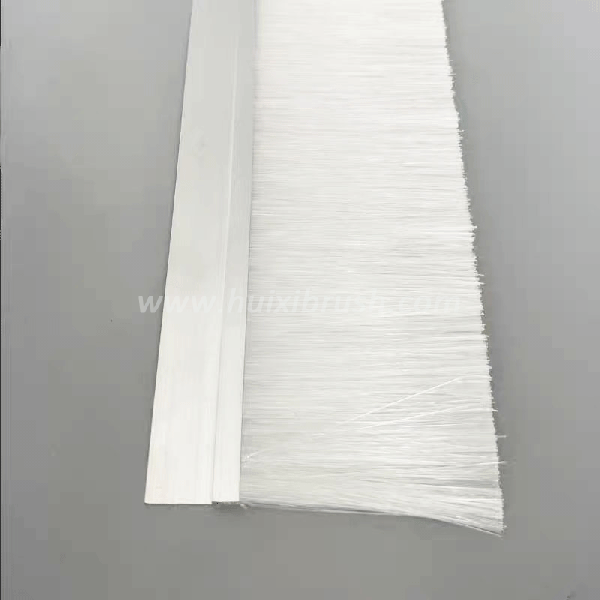

White Nylon Aluminium Holder Strip Brush
|
|
|
Channel Base
|
Material
|
SECC galvanized steel, SUS-304 stainless steel, 6063-T5 aluminum |
|
RoHS
|
YES
|
|
|
REACH
|
YES
|
|
|
UL
|
YES
|
|
|
Channel Width
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Channel Height
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Filament
|
Material
|
PA6,PA66,PP,PBT,PET(flame retardant/anti-static),stainless steel,pure brass wire,animal hair,plant fiber,abrasive wire etc. |
|
Thickness
|
0.15，0.2，0.3，0.4，0.5，0.6，0.8，1.0mm
|
|
|
Type
|
straight/wave
|
|
|
Color
|
black,grey,blue,white,red,yellow,green,orange,purple(or customized per Pantone,RAL,NCS) |
|
|
Property
|
normal standard/flame retardant/anti-static
|
|
|
RoHS
|
YES
|
|
|
REACH
|
YES(except flame retardant bristles)
|
|
|
UL
|
YES
|
|
|
Brush Size
|
Brush Overal Height
|
5-175mm (customized)
|
|
Brush Total Length
|
5-3000mm (customized)
|
|
|
(Complete Brush) RoHS
|
YES
|
|
|
(Complete Brush) REACH
|
YES(except flame retardant bristles)
|
|
|
(Complete Brush) UL
|
YES
|
|
|
Remark: All PA6,PA66,PP,PBT,PET filament have flame retardant or anti-static feature; flame retardant bristles meet the RoHS standard but not REACH. |
||
We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
See our standard profile size to find the same of similar to yours or contact with our sales to request new ones for your unique application.
