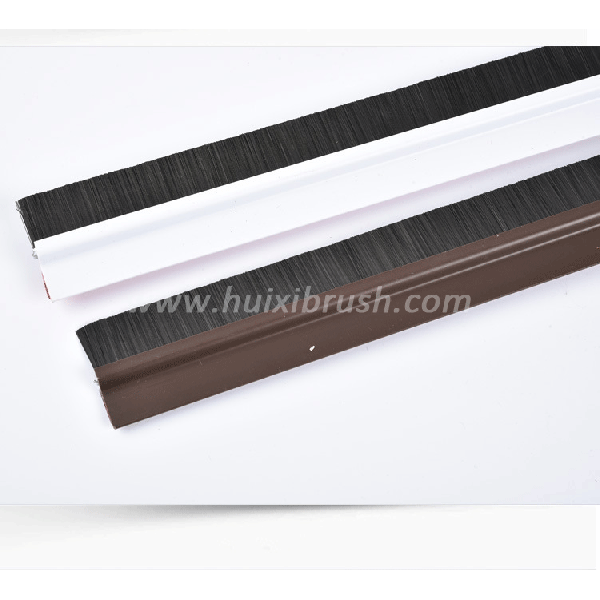

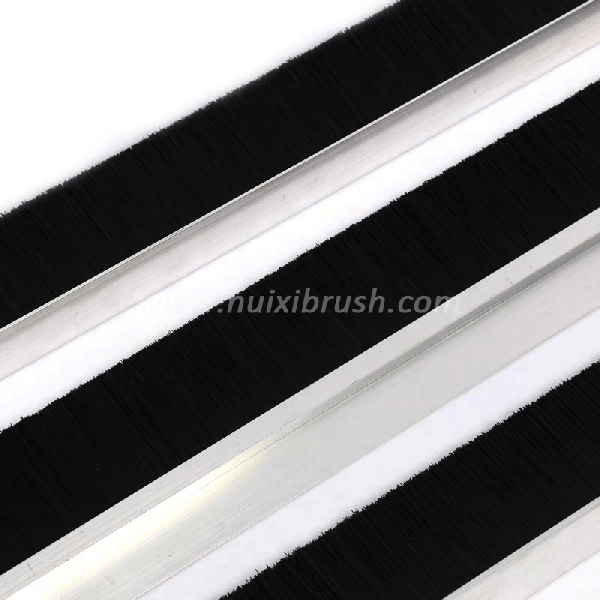

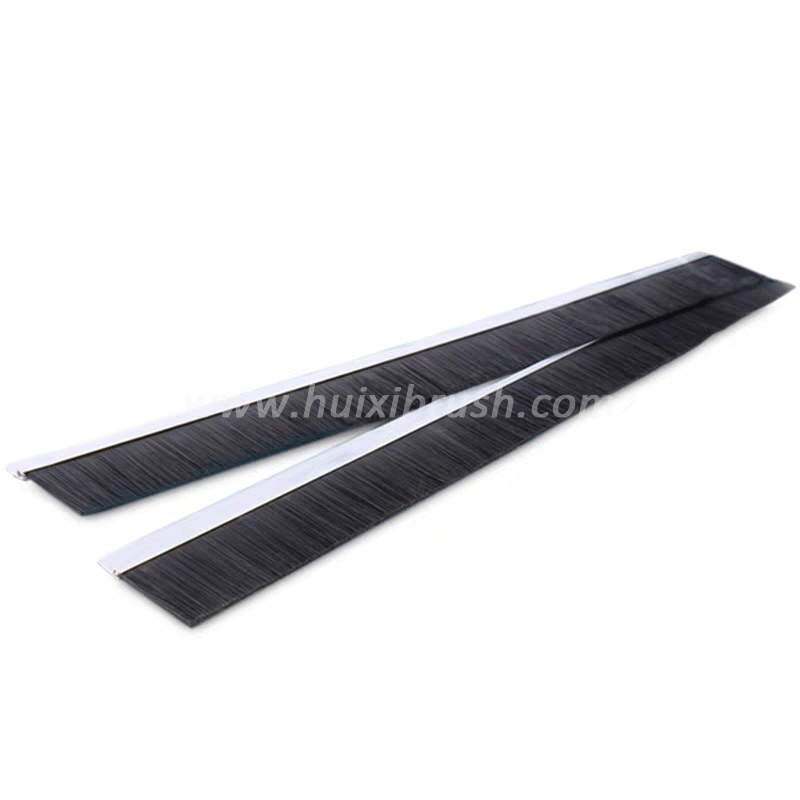

Industrial Door System Brush Weather Stripping Door Brush
We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
These are our standard profile size, if no similar to yours, please contact with our sales to request custom ones for your unique application.
We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
These are our standard profile size, if no similar to yours, please contact with our sales to request custom ones for your unique application.
Strip brushes are widely used in various types of automatic doors, movable doors and windows, revolving doors, smooth doors, seals on elevators and to block dust, prevent dust from entering the inside, and cleaning of large industrial machinery, glass edging machine water blocking, agricultural harvester interior seals, seals for wind generator compartment covers and strip brushes for car washers, etc. The strip brush is an indispensable accessory for modern industrial equipment.
|
SPECIFICATION (MM)
|
||
|
Product Name
|
Industrial Door System Brush Weather Stripping Door Brush
|
|
|
Channel Base
|
Material
|
SECC galvanized steel, SUS-304 stainless steel, 6063-T5 aluminum |
|
RoHS
|
YES
|
|
|
REACH
|
YES
|
|
|
UL
|
YES
|
|
|
Channel Width
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Channel Height
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Filament
|
Material
|
PA6,PA66,PP,PBT,PET(flame retardant/anti-static),stainless steel,pure brass wire,animal hair,plant fiber,abrasive wire etc. |
|
Thickness
|
0.15，0.2，0.3，0.4，0.5，0.6，0.8，1.0mm
|
|
|
Type
|
straight/wave
|
|
|
Color
|
black,grey,blue,white,red,yellow,green,orange,purple(or customized per Pantone,RAL,NCS) |
|
|
Property
|
normal standard/flame retardant/anti-static
|
|
|
RoHS
|
YES
|
|
|
REACH
|
YES(except flame retardant bristles)
|
|
|
UL
|
YES
|
|
|
Brush Size
|
Brush Overal Height
|
5-175mm (customized)
|
|
Brush Total Length
|
5-3000mm (customized)
|
|
|
(Complete Brush) RoHS
|
YES
|
|
|
(Complete Brush) REACH
|
YES(except flame retardant bristles)
|
|
|
(Complete Brush) UL
|
YES
|
|
|
Remark: All PA6,PA66,PP,PBT,PET filament have flame retardant or anti-static feature; flame retardant bristles meet the RoHS standard but not REACH. |
||
We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
These are our standard profile size, if no similar to yours, please contact with our sales to request custom ones for your unique application.
We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
These are our standard profile size, if no similar to yours, please contact with our sales to request custom ones for your unique application.
Strip brushes are widely used in various types of automatic doors, movable doors and windows, revolving doors, smooth doors, seals on elevators and to block dust, prevent dust from entering the inside, and cleaning of large industrial machinery, glass edging machine water blocking, agricultural harvester interior seals, seals for wind generator compartment covers and strip brushes for car washers, etc. The strip brush is an indispensable accessory for modern industrial equipment.
