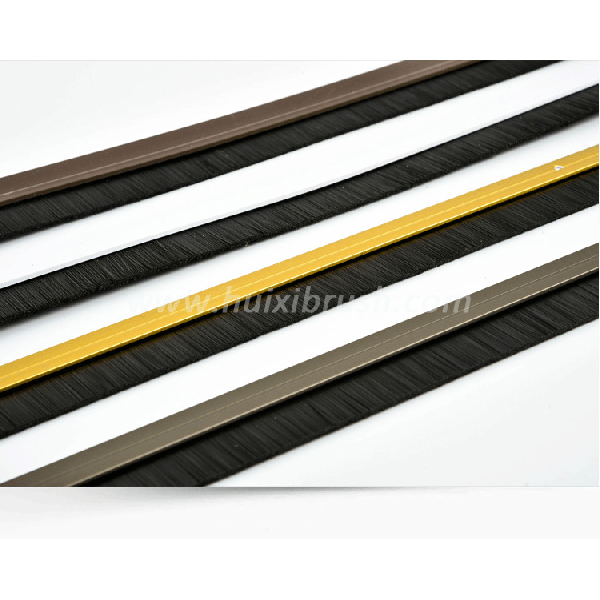

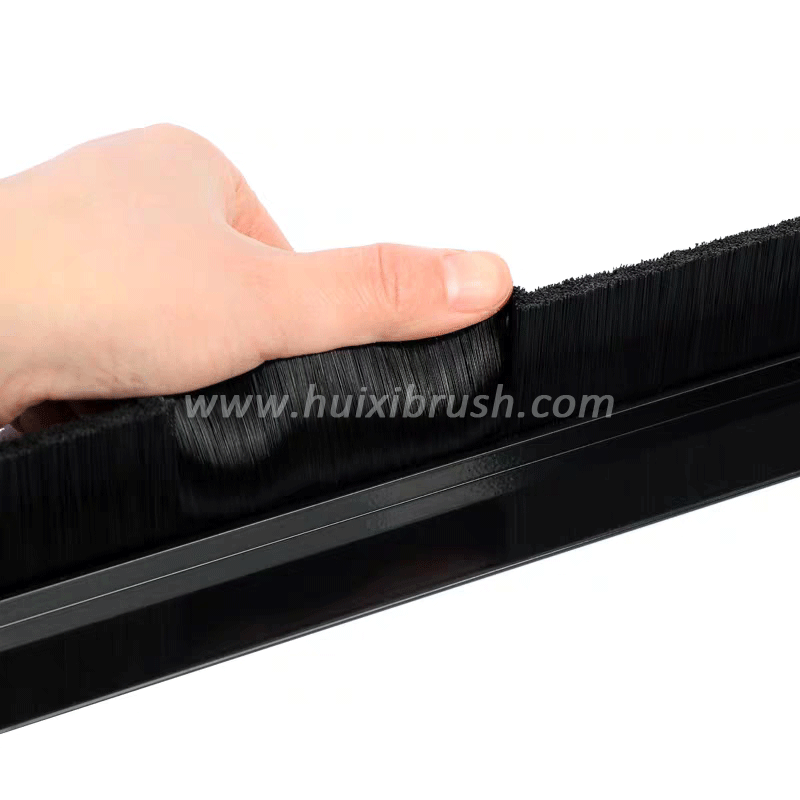

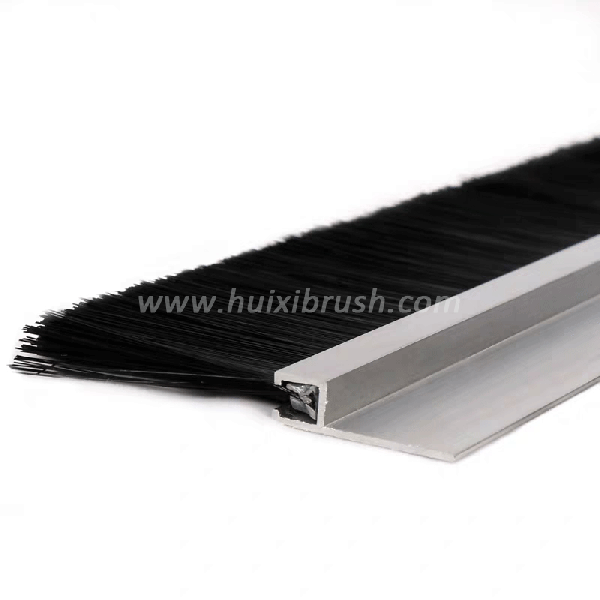

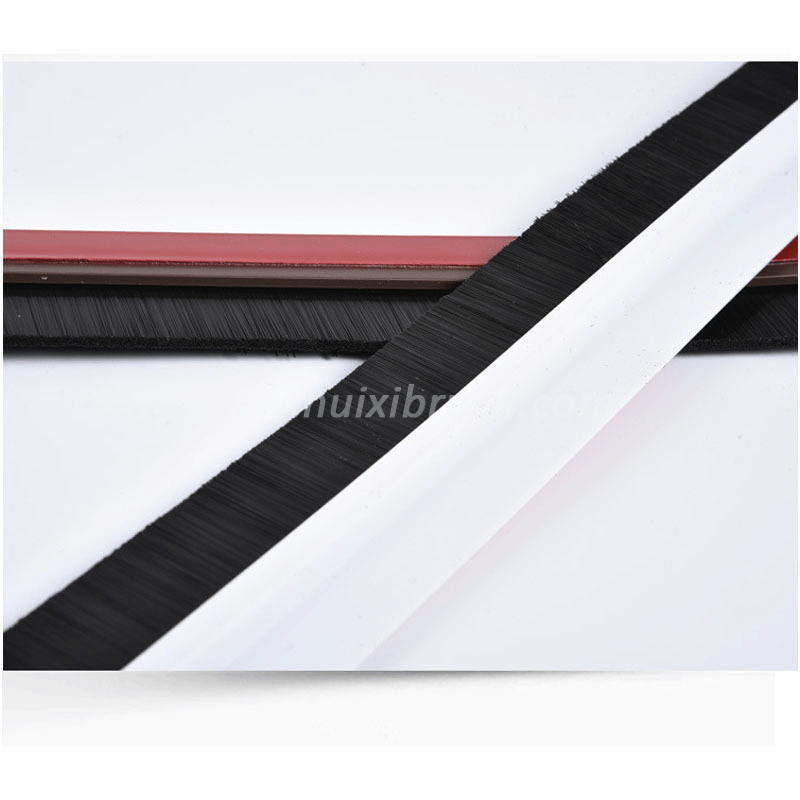

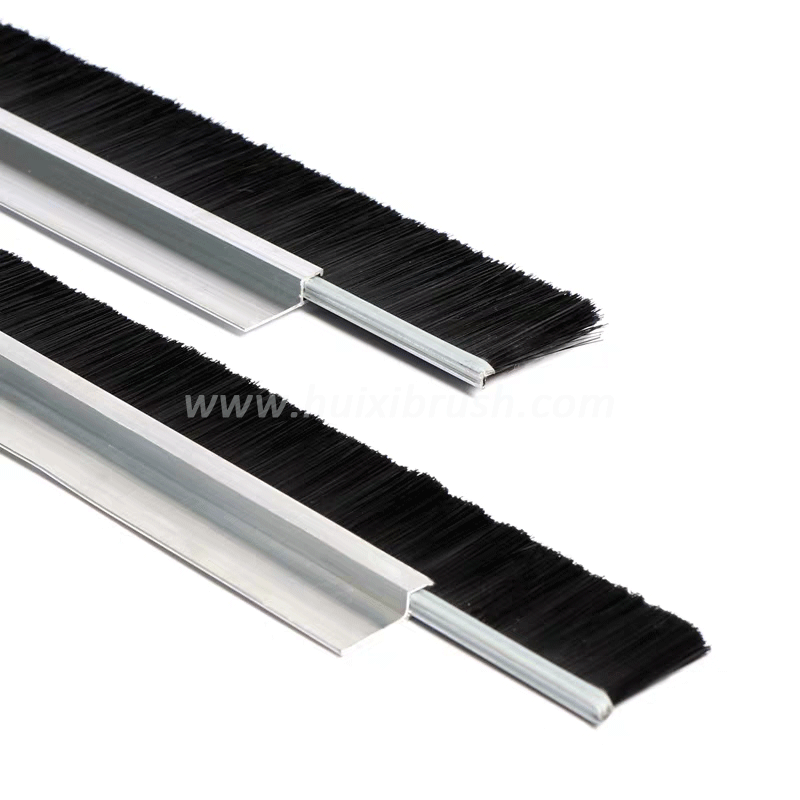

Fine Weather Strip Garage Door Sealing Brush
Length: 1m / piece
Material: Black Nylon and F aluminum holder
Anti-flame filament
Length: 1m / piece
Material: Black Nylon and F aluminum holder
Anti-flame filament
Specification Customized As Your Request
.gif)
.gif)
.gif)
We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
These are our standard profile size, if no similar to yours, please contact us to request custom ones for your unique application.
Strip Brush in machinery is use for cleaning,sealing of machinery and equipment. And according to the needs of different industries to adjust the characteristics of the material, such as acid and alkali resistance, corrosion resistance, anti-aging, anti-static and so on. Aluminum alloy seal brush is the first choice in modern industrial occasions.
|
SPECIFICATION (MM)
|
||
|
Product Name
|
Strip Brush
|
|
|
Channel Base
|
Material
|
SECC galvanized steel, SUS-304 stainless steel, 6063-T5 aluminum |
|
RoHS
|
YES
|
|
|
REACH
|
YES
|
|
|
UL
|
YES
|
|
|
Channel Width
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Channel Height
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Filament
|
Material
|
PA6,PA66,PP,PBT,PET(flame retardant/anti-static),stainless steel,pure brass wire,animal hair,plant fiber,abrasive wire etc. |
|
Thickness
|
0.15，0.2，0.3，0.4，0.5，0.6，0.8，1.0mm
|
|
|
Type
|
straight/wave
|
|
|
Color
|
black,grey,blue,white,red,yellow,green,orange,purple(or customized per Pantone,RAL,NCS) |
|
|
Property
|
normal standard/flame retardant/anti-static
|
|
|
RoHS
|
YES
|
|
|
REACH
|
YES(except flame retardant bristles)
|
|
|
UL
|
YES
|
|
|
Brush Size
|
Brush Overal Height
|
5-175mm (customized)
|
|
Brush Total Length
|
5-3000mm (customized)
|
|
|
(Complete Brush) RoHS
|
YES
|
|
|
(Complete Brush) REACH
|
YES(except flame retardant bristles)
|
|
|
(Complete Brush) UL
|
YES
|
|
|
Remark: All PA6,PA66,PP,PBT,PET filament have flame retardant or anti-static feature; flame retardant bristles meet the RoHS standard but not REACH. |
||
We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
These are our standard profile size, if no similar to yours, please contact us to request custom ones for your unique application.
Strip Brush in machinery is use for cleaning,sealing of machinery and equipment. And according to the needs of different industries to adjust the characteristics of the material, such as acid and alkali resistance, corrosion resistance, anti-aging, anti-static and so on. Aluminum alloy seal brush is the first choice in modern industrial occasions.
