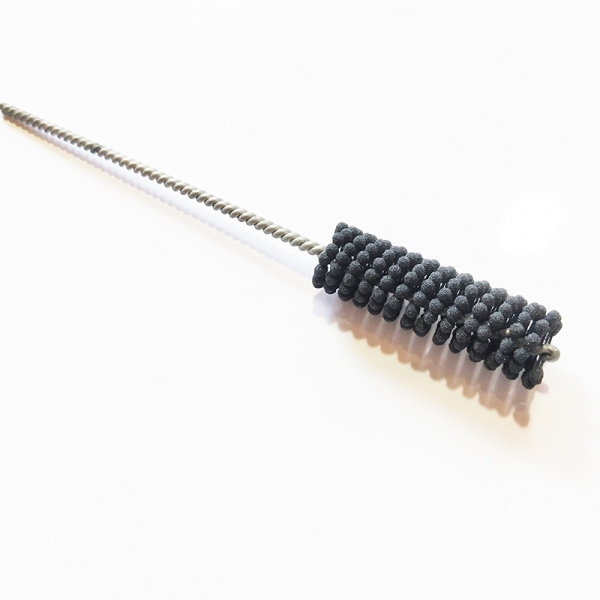

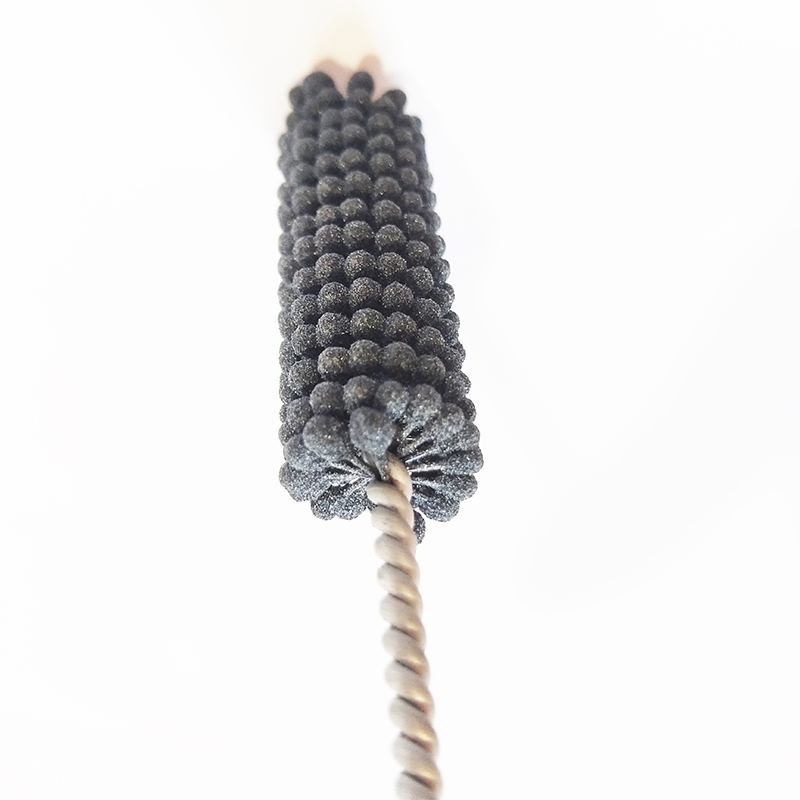

Flex hone brush can easily and quickly perform the best surface treatment on cylinders, valves, lumens, and pipes of various shapes and sizes.

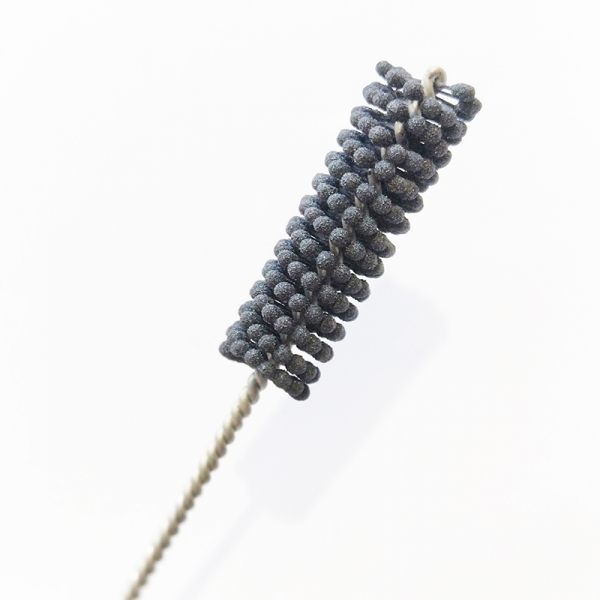

Flex hone brush abrasive materials comes in a variety according to the metal surface mostly used are silicon carbide, aluminum oxide, boron carbide, diamond, ceramic. Grit Sizes are #60 #80 #120 #180 #240 #320 #400 #600 #800 #1000
| Item No. | Hone Diameter (D) | Hone Length | Total Length | |
| MM | INCH | HL (MM) | TL (MM) | |
| HB-004 | 4 | .157‘‘ | 50 | 160 |
| HB-0045 | 4.5 | .177‘‘ | 50 | 160 |
| HB-005 | 5 | .197‘‘ | 50 | 160 |
| HB-0055 | 5.5 | .217‘‘ | 50 | 160 |
| HB-006 | 6 | .234‘‘ | 50 | 160 |
| HB-0064 | 6.4 | 1/4‘‘ | 50 | 160 |
| HB-007 | 7 | 9/32‘‘ | 50 | 160 |
| HB-008 | 8 | 5/16‘‘ | 50 | 160 |
| HB-009 | 9 | 11/32‘‘ | 50 | 160 |
| HB-0095 | 9.5 | .375‘‘ | 50 | 160 |
| HB-010 | 10 | 3/8‘‘ | 60 | 180 |
| HB-011 | 11 | 7/16‘‘ | 60 | 180 |
| HB-012 | 12 | .472‘‘ | 60 | 180 |
| HB-0127 | 12.7 | 1/2‘‘ | 60 | 180 |
| HB-016 | 16 | 5/8‘‘ | 60 | 180 |
| HB-018 | 18 | .709‘‘ | 60 | 180 |
| HB-019 | 19 | 3/4‘‘ | 60 | 180 |
| HB-020 | 20 | .787‘‘ | 60 | 180 |
| HB-022 | 22 | 7/8‘‘ | 70 | 180 |
| HB-024 | 24 | 15/16‘‘ | 70 | 180 |
| HB-0254 | 25.4 | 1‘‘ | 70 | 180 |
| HB-029 | 29 | 1 1/8‘‘ | 70 | 180 |
| HB-0318 | 31.8 | 1 1/4‘‘ | 70 | 200 |
| HB-035 | 35 | 1 3/8‘‘ | 70 | 200 |
| HB-038 | 38 | 1 1/2‘‘ | 70 | 200 |
| HB-041 | 41 | 1 5/8‘‘ | 70 | 200 |
| HB-045 | 45 | 1 3/4‘‘ | 70 | 200 |
| HB-048 | 48 | 1 7/8‘‘ | 70 | 200 |
| HB-051 | 51 | 2‘‘ | 75 | 200 |
| HB-054 | 54 | 2 1/8‘‘ | 75 | 200 |
| HB-057 | 57 | 2 1/4‘‘ | 75 | 200 |
| HB-060 | 60 | 2 3/8‘‘ | 75 | 200 |
| HB-064 | 64 | 2 1/2‘‘ | 75 | 200 |
| HB-067 | 67 | 2 5/8‘‘ | 75 | 200 |
| HB-070 | 70 | 2 3/4‘‘ | 75 | 200 |
| HB-073 | 73 | 2 7/8‘‘ | 75 | 200 |
| HB-076 | 76 | 3‘‘ | 75 | 200 |
| HB-079 | 79 | 3 1/8‘‘ | 75 | 200 |
| HB-083 | 83 | 3 1/4‘‘ | 75 | 200 |
| HB-086 | 86 | 3 3/8‘‘ | 75 | 200 |
| HB-089 | 89 | 3 1/2‘‘ | 75 | 200 |
| HB-092 | 92 | 3 5/8‘‘ | 90 | 200 |
| HB-095 | 95 | 3 3/4‘‘ | 90 | 200 |
| HB-098 | 98 | 3 7/8‘‘ | 90 | 200 |
| HB-102 | 102 | 4‘‘ | 110 | 220 |
| HB-105 | 105 | 4 1/8‘‘ | 110 | 220 |
| HB-108 | 108 | 4 1/4‘‘ | 110 | 220 |
| HB-111 | 111 | 4 3/8‘‘ | 110 | 260 |
| HB-114 | 114 | 4 1/2‘‘ | 110 | 260 |
| HB-118 | 118 | 4 5/8‘‘ | 110 | 260 |
| HB-121 | 121 | 4 3/4‘‘ | 110 | 300 |
| HB-127 | 127 | 5‘‘ | 110 | 300 |
| HB-140 | 140 | 5 1/2‘‘ | 140 | 300 |
| HB-146 | 146 | 5 3/4‘‘ | 140 | 300 |
| HB-152 | 152 | 6‘‘ | 140 | 300 |
| HB-165 | 165 | 6 1/2‘‘ | 140 | 320 |
| HB-178 | 178 | 7‘‘ | 160 | 320 |
| HB-190 | 190 | 7 1/2‘‘ | 160 | 320 |
| HB-203 | 203 | 8‘‘ | 160 | 320 |
These sizes listed are our standard specification, for non-standard size and heavy-duty hone brushes like the diameter of more than 203mm, please contact our sales for a special quote. Samples are available for customers testing our brush quality in advance.
