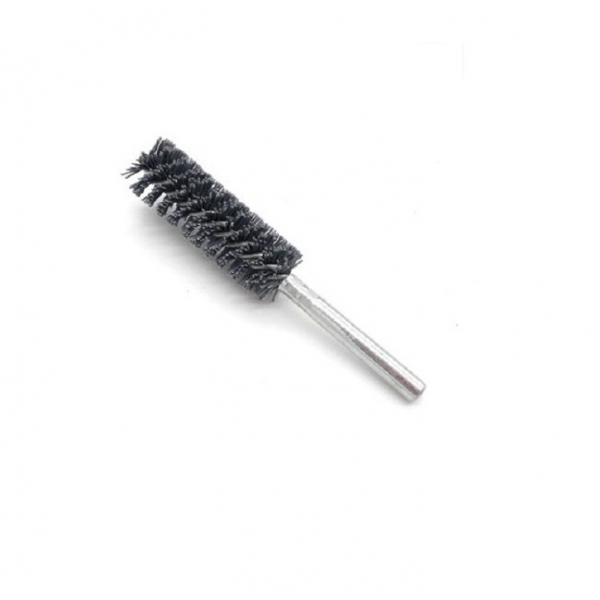

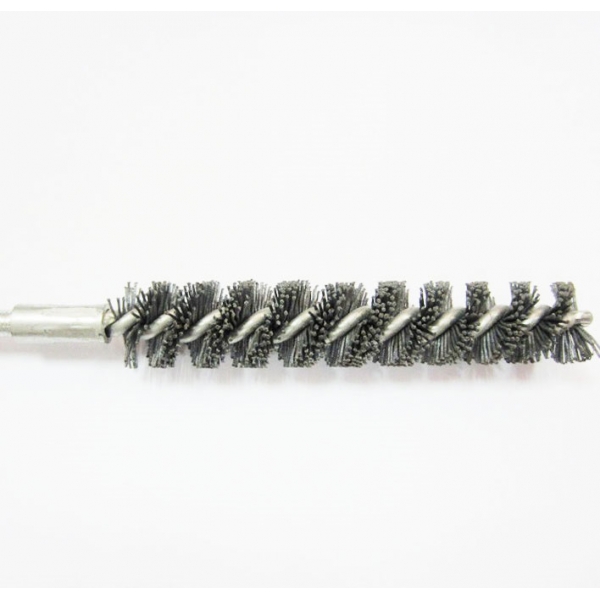

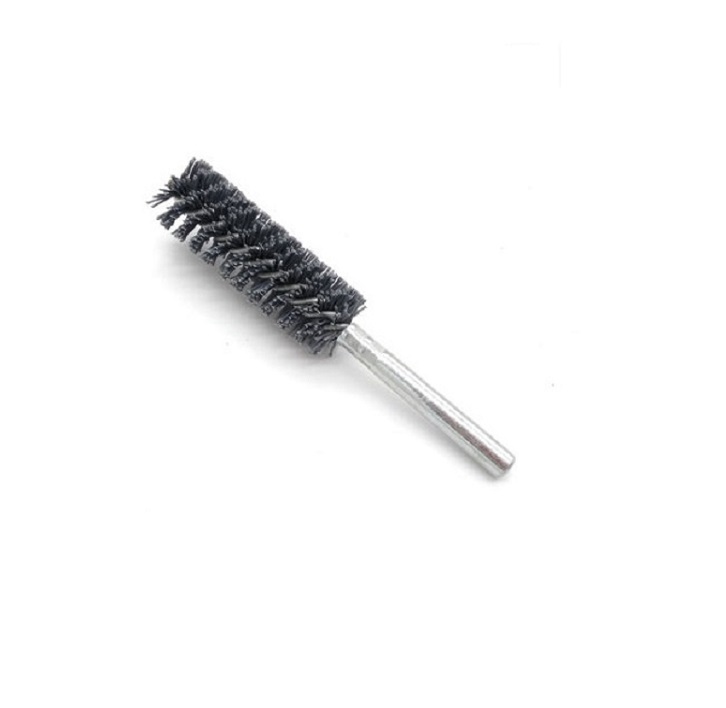

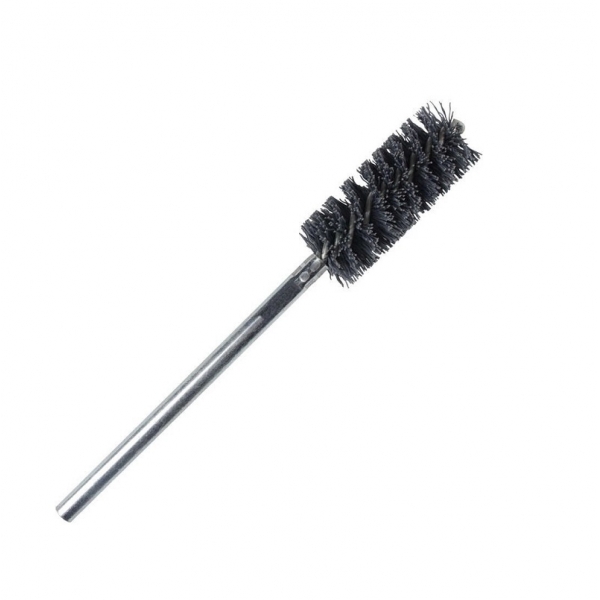

Twisted Nylon Wire Drill Deburring Brush
Twisted nylon deburring brushes are ideal for fine deburring of internal holes produced by small diameter drilling. Abrasive nylon tube brushes are used in power tools to create a side-wiping action or used manually.The twisted abrasive nylon is hard abrasive consequently it has good cut but in the finer grades it will leave a very smooth finish. The abrasive will not cause too much damage to the bore or start of the hole unlike other metal twist in wire or flex holes.
Our twisted nylon wire brushes can also be used for cleaning and polishing bores and holes.
| D (Brush Diameter) | A (Brushing Part) | L (Overall Length) | Wire Diameter | Abrasive Nylon Diameter | d (Thread) |
| MM | MM | MM | MM / GRIT | ||
| 8 | 35~100 | 100~180 | 0.1-0.3 | 0.3/0.4/0.5/0.6/0.75/0.8/1.0/1.1 (grit #600 #500 #400 #320 #240 #180 #120) | M6/M8/M10/ M14 |
| 10 | 35~100 | 100~180 | 0.1-0.3 | ||
| 12 | 35~100 | 100~180 | 0.1-0.3 | ||
| 14 | 35~150 | 100~200 | 0.1-0.3 | ||
| 16 | 35~150 | 100~200 | 0.1-0.3 | ||
| 18 | 35~150 | 100~200 | 0.1-0.3 | ||
| 20 | 35~150 | 100~200 | 0.1-0.3 | ||
| 22 | 35~150 | 100~200 | 0.1-0.5 | ||
| 24 | 35~150 | 100~200 | 0.1-0.5 | ||
| 28 | 35~150 | 100~200 | 0.1-0.5 | ||
| 30 | 35~160 | 100~250 | 0.1-0.5 | ||
| 35 | 35~160 | 100~250 | 0.1-0.5 | ||
| 40 | 35~160 | 100~250 | 0.1-0.5 | ||
| 45 | 35~160 | 100~250 | 0.1-0.5 | ||
| 50 | 35~160 | 100~250 | 0.1-0.5 | ||
| 55 | 35~160 | 100~250 | 0.1-0.5 | ||
| 60 | 40-160 | 100-300 | 0.1-0.5 | ||
| 65 | 40-160 | 100-300 | 0.1-0.5 | ||
| 70 | 40-160 | 100-300 | 0.1-0.5 | ||
| 75 | 40-160 | 100-300 | 0.1-0.5 | ||
| 80 | 40-160 | 100-300 | 0.1-0.5 | ||
| 85 | 50-200 | 150-300 | 0.2-0.5 | ||
| 90 | 50-200 | 150-300 | 0.2-0.5 | ||
| 95 | 50-200 | 150-300 | 0.2-0.5 | ||
| 100 | 50-200 | 150-300 | 0.2-0.5 | ||
| 105 | 50-200 | 150-300 | 0.2-0.5 | ||
| 110 | 50-200 | 150-300 | 0.2-0.5 |
Abrasive twisted nylon deburring brushes are used for deburring cross holes or edges in bores, these twisted deburring brushes are excellent for deburring in any metal components.
