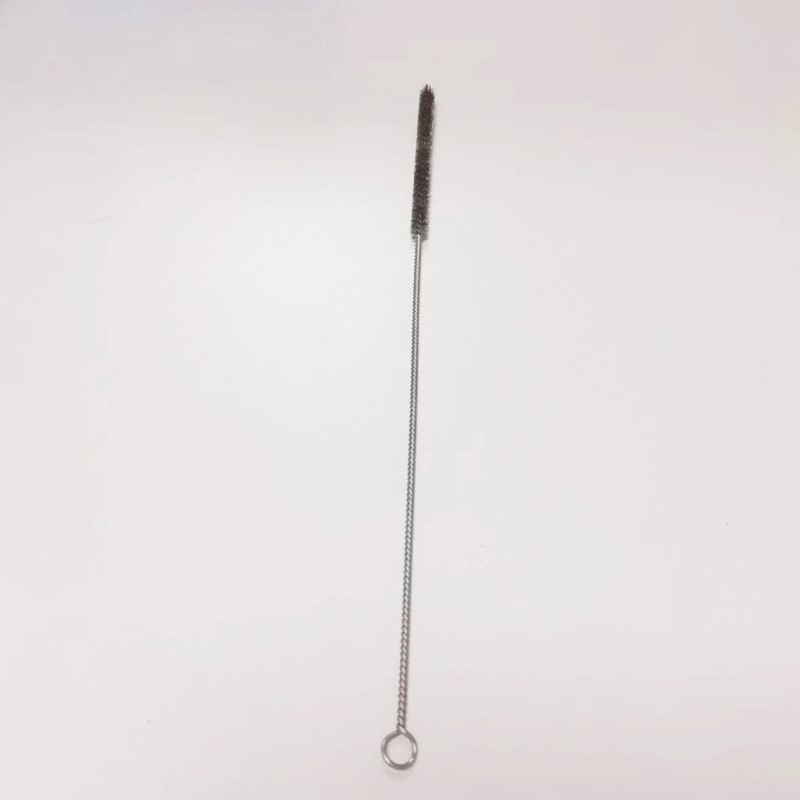

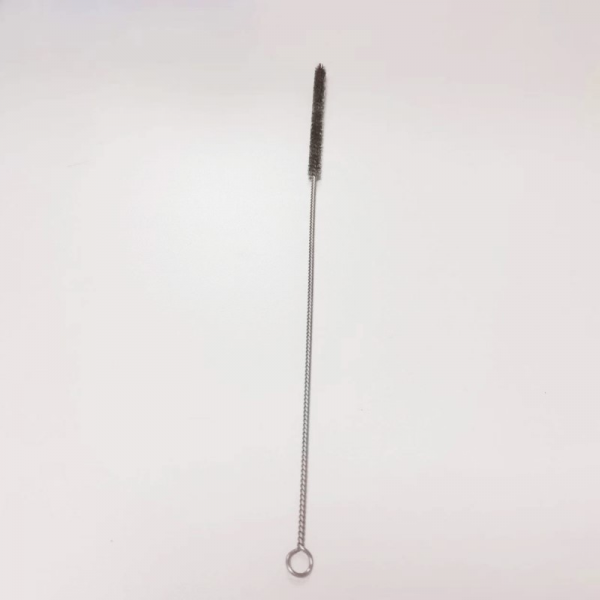

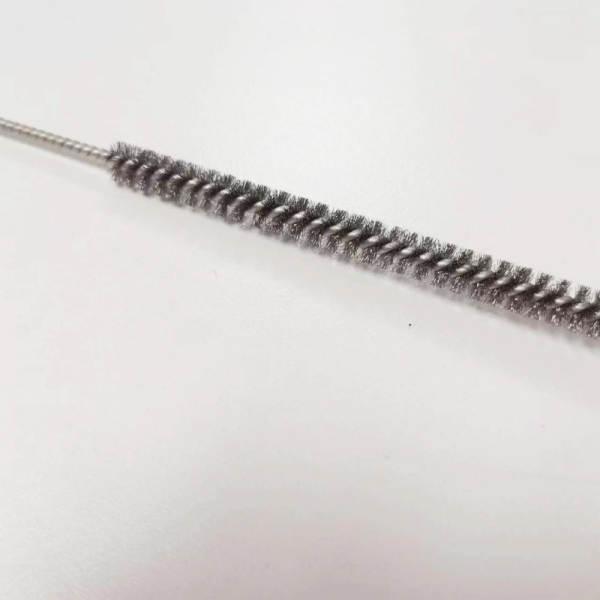

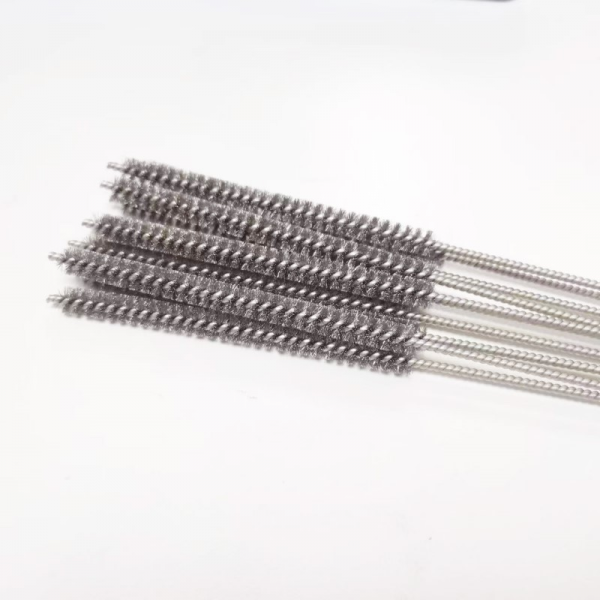

The pipe brush is mainly used to remove the tiny burrs on the surface of the hole after finishing, thereby improving the smoothness of the inner hole. They are often used for deburring the inner groove edges of hydraulic cutting holes, deburring cross holes, deburring air conditioners (compressors), deburring cylinders, engine parts, machining, and machining in holes. Brake core processing; at the same time, it is also suitable for polishing some cone-shaped, cone-shaped, and venturi-shaped holes.
For your special request specification, please provide the following information
- AL (brush total length)
- BL(brushing part length)
- D(brush diameter), or the part hole size
- S(thread rod or twist wire)
- wire material( we have steel wire, brass wire, stainless steel wire, synthetic fiber)
|
D (brush diameter) |
BL (brush part length) |
AL (overall length) |
Wire Filament |
Abrasive Nylon Filament |
S (thread rod) |
|
MM |
MM |
MM |
MM / GRIT |
|
|
|
8 |
35~100 |
100~180 |
0.1/0.15/0.2/0.3 |
0.3/0.4/0.5/0.6/0.75/0.8/1.0/1.1 (grit #600 #500 #320 #240 #180 #120) |
M6/M8/M10/M14 |
|
10 |
35~100 |
100~180 |
|||
|
12 |
35~100 |
100~180 |
|||
|
14 |
35~150 |
100~200 |
|||
|
16 |
35~150 |
100~200 |
|||
|
18 |
35~150 |
100~200 |
|||
|
20 |
35~150 |
100~200 |
|||
|
22 |
35~150 |
100~200 |
|||
|
24 |
35~150 |
100~200 |
|||
|
28 |
35~150 |
100~200 |
|||
|
30 |
35~160 |
100~250 |
|||
|
35 |
35~160 |
100~250 |
|||
|
40 |
35~160 |
100~250 |
|||
|
45 |
35~160 |
100~250 |
|||
|
50 |
35~160 |
100~250 |
|||
|
55 |
35~160 |
100~250 |
|||
