This T-shaped garage door brush seals are soundproof, dustproof, waterproof and insectproof. Manufacturer direct supply, free cutting and durable wear-resistant.
|
SPECIFICATION (MM)
|
||
|
Product Name
|

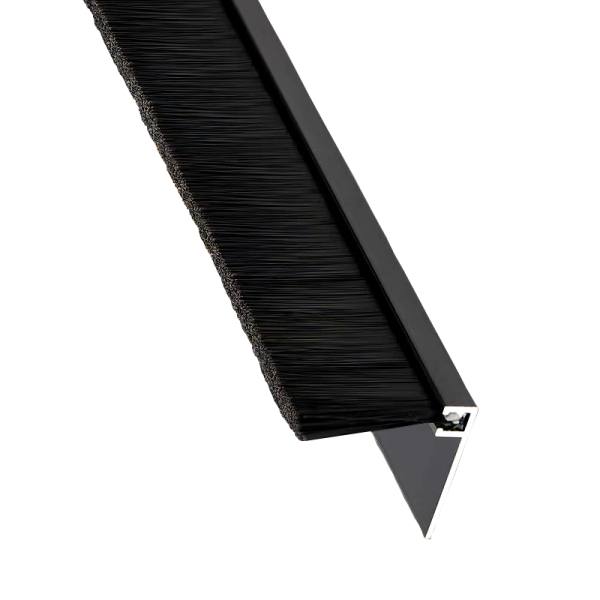

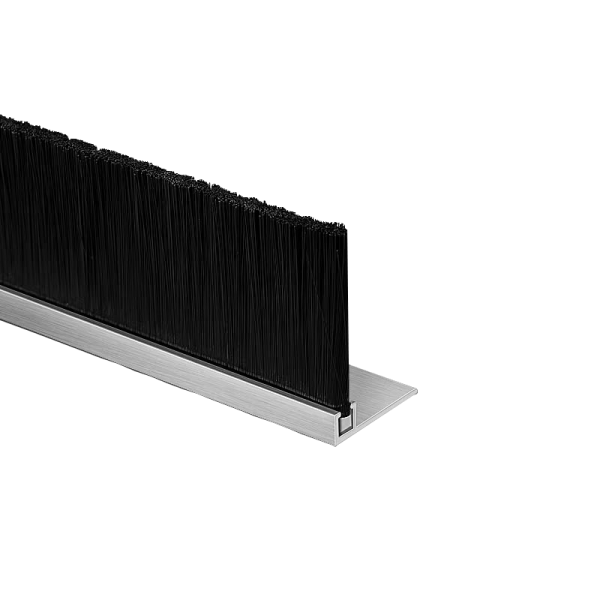

T Aluminum Holder Garage Door Bristle Strip Seal
|
|
|
Channel Base
|
Material
|
SECC galvanized steel, SUS-304 stainless steel, 6063-T5 aluminum |
|
RoHS
|
YES
|
|
|
REACH
|
YES
|
|
|
UL
|
YES
|
|
|
Channel Width
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Channel Height
|
3，4，5，6，8，9，10，11，12mm
|
|
|
Filament
|
Material
|
PA6,PA66,PP,PBT,PET(flame retardant/anti-static),stainless steel,pure brass wire,animal hair,plant fiber,abrasive wire etc. |
|
Thickness
|
0.15，0.2，0.3，0.4，0.5，0.6，0.8，1.0mm
|
|
|
Type
|
straight/wave
|
|
|
Color
|
black,grey,blue,white,red,yellow,green,orange,purple(or customized per Pantone,RAL,NCS) |
|
|
Property
|
normal standard/flame retardant/anti-static
|
|
|
RoHS
|
YES
|
|
|
REACH
|
YES(except flame retardant bristles)
|
|
|
UL
|
YES
|
|
|
Brush Size
|
Brush Overal Height
|
5-175mm (customized)
|
|
Brush Total Length
|
5-3000mm (customized)
|
|
|
(Complete Brush) RoHS
|
YES
|
|
|
(Complete Brush) REACH
|
YES(except flame retardant bristles)
|
|
|
(Complete Brush) UL
|
YES
|
|
|
Remark: All PA6,PA66,PP,PBT,PET filament have flame retardant or anti-static feature; flame retardant bristles meet the RoHS standard but not REACH. |
||
Huixi supplied strip brush is used for cleaning,sealing of machinery and equipment. And according to the needs of different industries to adjust the characteristics of the material, such as acid and alkali resistance, corrosion resistance, anti-aging, anti-static and so on. Aluminum alloy seal brush is the first choice in modern industrial occasions.

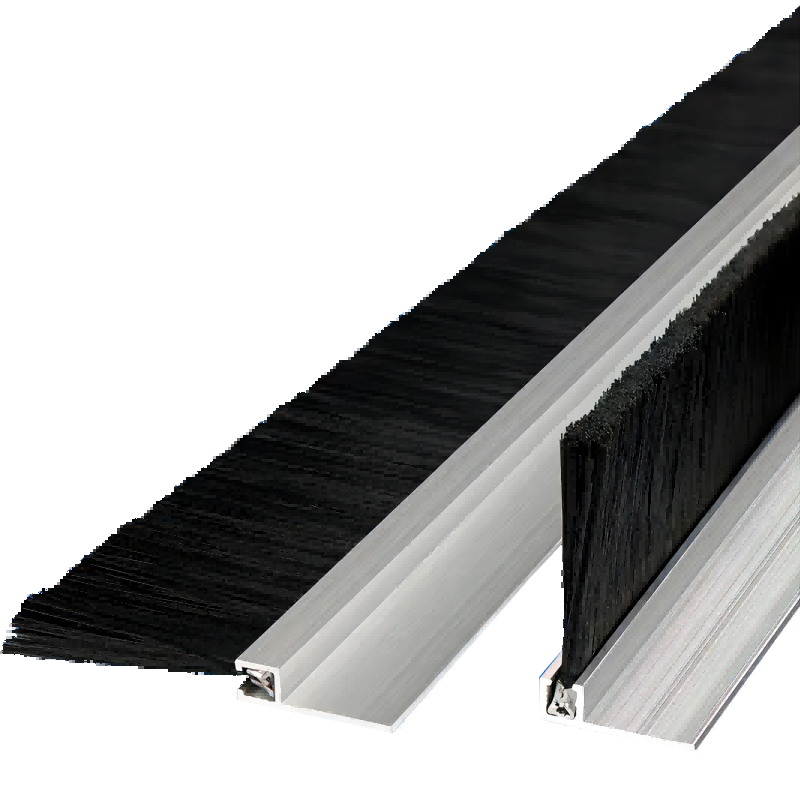

We supply H, F, T, Y shape aluminum profile carrier to match the brush strips.
These are our standard profile size, if no similar to yours, please contact us to request custom ones for your unique application.
